VPS Best Practices

This guide provides UI/UX best practices for implementing VPS (Visual Positioning System) in your application. Since VPS requires camera access and user interaction, providing a clear and intuitive experience is crucial for user adoption and success.

User Onboarding​

Explain What VPS Is​

Before requesting camera permissions, help users understand why VPS is needed and what it does. Users are more likely to grant permissions when they understand the value.

Key points to communicate:

  • VPS provides accurate indoor positioning
  • It uses the camera to recognize the environment
  • It uses the camera and the sensors to follow the user's movement

Permission Management​

Request Flow​

Request permissions in a logical sequence:

  1. First, explain why - Show a brief explanation screen before requesting permissions
  2. Request camera permission - Use clear, contextual messaging
  3. Handle denials gracefully - Provide clear next steps if permissions are denied

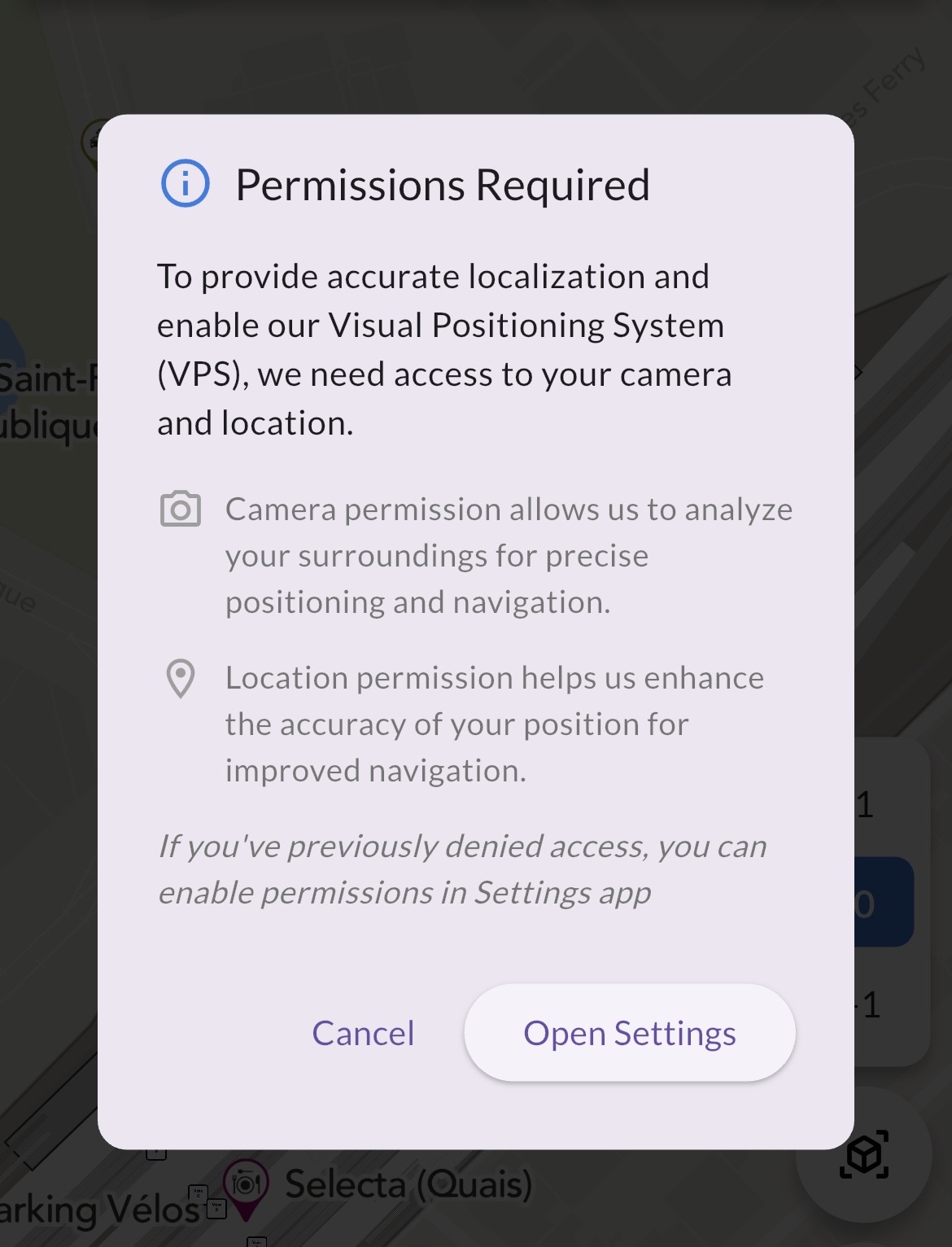

Authorization flow example Example of the authorization flow

Permission Denial Handling​

If users deny permissions, provide:

  • Clear explanation of what features won't work
  • Easy path to re-enable permissions in settings

Visual indicators:

  • Use distinct visual states for granted/denied permissions
  • Show permission status in your UI

Camera unavailable example Example of the camera unavailable state

Scanning Experience​

Visual Feedback During Scan​

During the scanning process, users need clear feedback about what's happening:

Loading states:

  • Show a clear "Scanning..." indicator
  • Use animations to indicate active processing

User guidance:

  • Display instructions on screen: "Point camera at your surroundings"
  • Show movement guidance: "Move slowly and steadily"
  • Provide visual frame guides or targeting indicators to help users aim the camera

Scan duration:

  • Set expectations: "This will take a few seconds"
  • Provide feedback when scan completes successfully
*Example of the scanning interface*

Layout Recommendations​

Camera container placement:

  • Consider fullscreen mode for initial scan to maximize camera view

Error Handling & User Communication​

Common Failure Scenarios​

Scan loading timeout:

If a scan fails and no position is found, the system will not return error but will try to send another scan request, it will continue to do so until a position is found, or the user cancels the scan.

info

The VPS system needs well textured surfaces to work properly. So if the scan takes longer than expected (approx. 5 seconds), you can suggest the user to point the camera at a different location.

Scan Triggers & Timing​

When to Trigger Scans​

Initial scan:

  • Trigger when user wants to start a navigation or get his location

Manual re-scan:

  • Suggest the user to scan again when the position is inaccurate (when WemapVPSARCoreLocationSourceListener reported DEGRADED_POSITIONING)

Position inaccurate - re-scan suggestion Example of the re-scan suggestion

When scan succeeds:

  • Show clear success indicator (checkmark, success message)
  • Confirm position found

Position received example Example of the position received

Camera Resource Management​

When to hide camera:

  • After successful scan
  • When the user cancels the scan

User Flow​

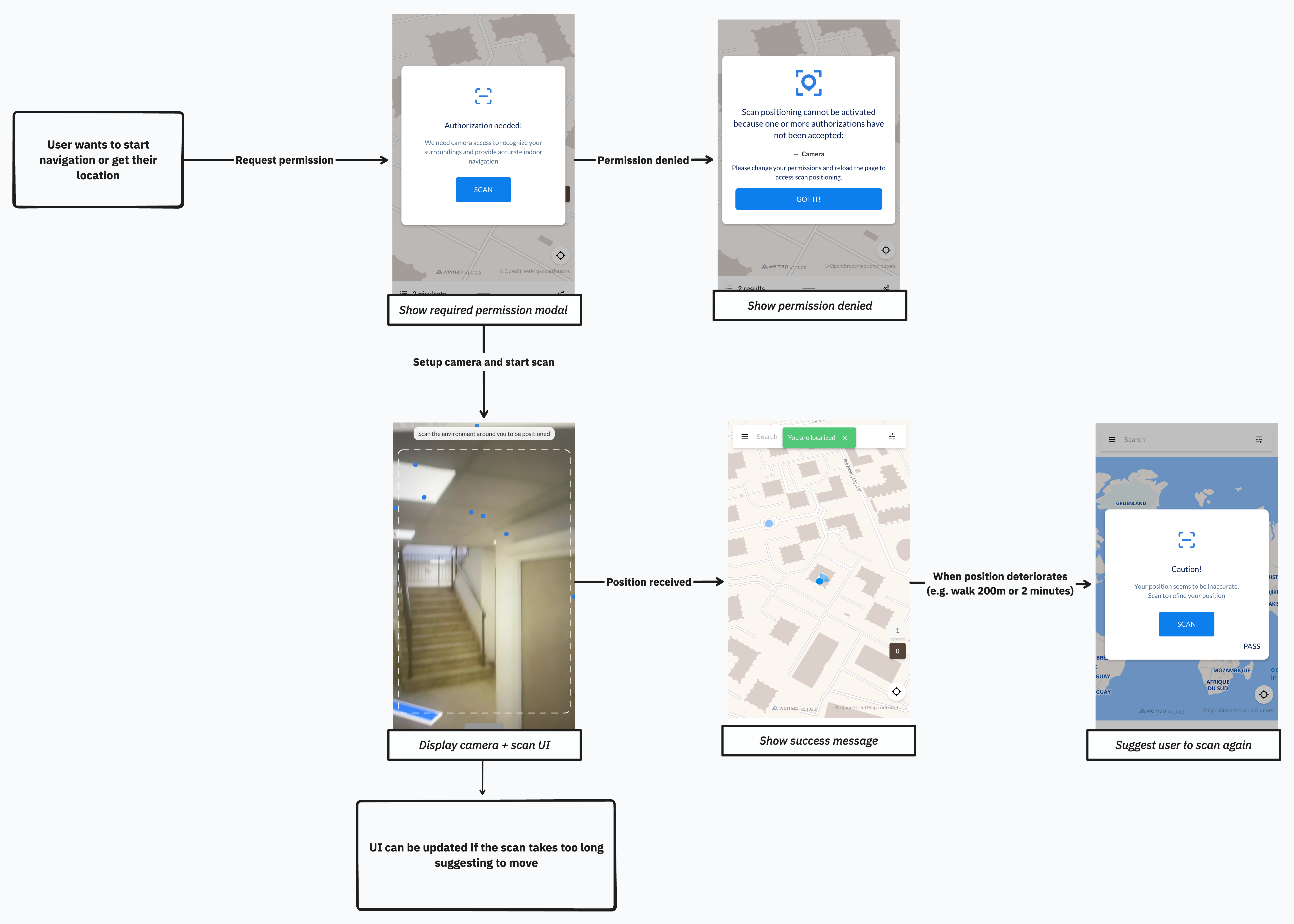

VPS User Flow Diagram VPS User Flow Diagram

Examples​

For additional examples and sample implementations of WemapSDKs, visit the official GitHub repository.

Clone the repository and follow the README instructions to run the sample application.
